ATS LVL Timber Beam

Best quality Laminated Veneer Lumber Timber Beam by ATS, height 150 mm, width 65 mm, length can be supplying any length up to 6 m., good strength, durability & sustainability, can replace all available current timber beams, some available clamps in market will be adaptable for ATS LVL Timber Beam.
ATS LVL Timber Beam product image ATS LVL Timber Beam product image ATS LVL Timber Beam product image

Below are our some of our products (please share this text line)

ATS LVL Timber Beam product image

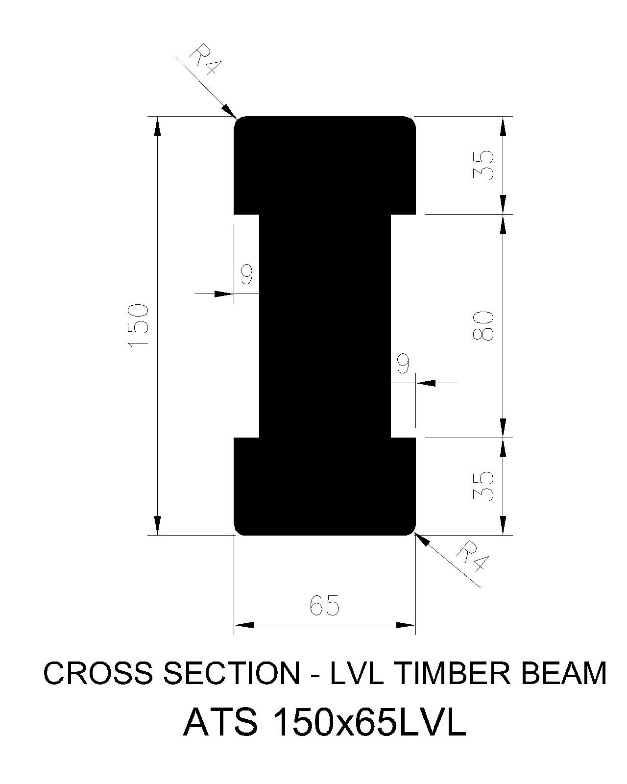

Properties
  • Gross Area : 86cm²
  • Flexural Rigidity EI : 184kNm²
  • Maximum Bending Moment xx : 5.65kNm
  • Max Shear Load : 22.1kN
  • Self Weight : 5.20kg/m
  • Overall Depth of Section : 150mm
  • Overall Width of Section : 65mm
  • Minimum Factor of Safety : 2
  • Shear Stiffness, GA : 3772kN
